Forklift хуудас хуудас хавсралт

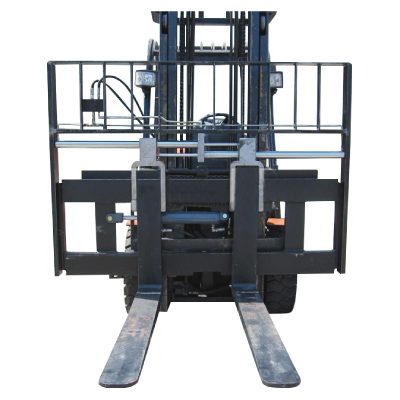

Push Pull Products introduction.

Push Pull is a very usefull forklift attachment.Palletless handling cargos in a unit by utilizing a cheap slipsheet.This forklift attachment can save an expensive pallet and reduce damage to cargo during handling. Forklift Push is only have a push action forced by hyraulic.It is proper for loading cargo in unit,baged and boxed. Forklift Push Pull have two actions one is push as we talked above and the other is pulling. Push Pull is good at cargo loading and diacharging. The push pull forklift attachment are used in various industries such as food, beverage, glassware, building material, agricultural, paper, chemical and the automotive parts industry.Custom push pull attachment is available.Please consult our Riggerte sales if you have any questions.

Видео бичлэгүүд

Каталог захиалгын дугаарХүчин чадал @
Load Center (kg@mm)		Ангилах ангиPlaten Size        WxL (mm)Stroke (mm)Minimum Truck Carriage Width  (mm)VCG хүндийн төвийн босоо төв (мм)Effective Thickness              ET(mm)Horizontal Center of Gravity        HCG(mm)
PPQ-1.6TE-B4551600@600II455x12201270790300165235
PPQ-1.6TE-B3801600@600II380x12201270790300165220
PPQ-2TE-B4552000@600II455x12201270790300165260
PPQ-2TE-B3802000@600II380x12201270790300165245

Forklift attachment Push Pull Features

High visibility pantograph, gripper jaw and faceplateFull bottom taper/adjustable platens4° tilting faceplateChamfered platen corners and gripper jaw design protects the slip sheet High strength, rigid pantograph for safe load packingT-1 steel platens"Cushion" cylinders reduce operating noise Simplified hydraulic circuit Sideshift J-plate is automatically engaged when the push/pull is set on the truck carriageNo false carriage is required on quick disconnect models Sideshift function is available for custom.

Forklift attachment Push Pull Options

Quick-change hydraulic couplers

Extended face plates

Extended push strokes

Face plate and platens sizes are optional

Attachment mounted solenoid adaption group

Forks and multiple fork groups

Class III mounting

Forklift attachment Push Pull Warranty Policy

Riggerte (Xiamen) Forklift Truck Attachment Co., Ltd-ийн бүх шинэ бүтээгдэхүүнүүд, угсрах хэрэгсэл, сэрээ болон үйлчилгээний эд ангиудыг үндсэн тээвэрлэгчд хүргэснээс хойш 12 сарын хугацаанд буюу 2000 цагийн хугацаатайгаар ажиллуулах бөгөөд эхний ээлжинд ээлжит байдлаар дуусгавар болно. Баталгаат байдлын талаархи дэлгэрэнгүй мэдээллийг бидэнтэй холбоо бариарай.

Forklift attachment Push Pull Product selection suggestion

In case that customers don't know which model is proper.Please send an inquiry to Riggerte Sales.It would be much better if you can provide the following items in your inquiry.

Brand and model name of forklift truck that you are going to install a push pull attachment.

We need to know the forklift truck loading capacity,hydraulic flow pressure and functions.

Cargo unit packing information including gross weight,unit packing dimension,and cargo materials. As much details as you can offer.

Forklift truck working conditions.
